Gravity Rollers
Gravity Rollers - Plastic Rollers to convey light weight articles. Non-corrosive, maintenance free, low noise efficient & economic system. Available in engineering plastic materials in different sizes.

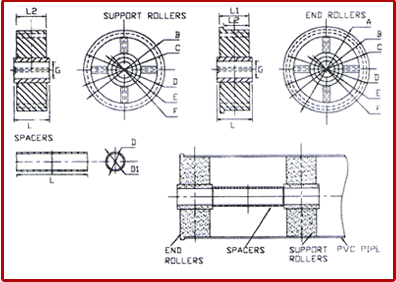

ROLLERS FOR PVC PIPE
GRAVITY ROLLER
Rollers for Pvc Pipe
Mat : Nylon 6 or Polypropylene Black Color
PVC Pipe Roller (PR -1)
| Sr. NO | A | B | C | D | E | F | G | L | L1; | L2 |
| end rollers | 63 | 60 | 54 | 48 | 24 | 18 | 12.1 | 25.5 | 21.5 | 18.5 |
| support rollers | nil | 60 | 54 | 48 | 24 | 18 | 12.1 | 25.5 | nil | 18.5 |
PVC Pipe Roller (PR -2)
| Sr. NO | A | B | C | D | E | F | G | L | L1 | L2 |
| end rollers | 40.5 | 37 | 34 | 28 | 22 | 16 | 10.1 | 18 | 15 | 13 |
| support rollers | nil | 37 | 34 | 28 | 22 | 16 | 10.1 | 18 | nil | 13 |
Spacer
| Sr.no | D | D1 | L |
| S-1 | 12.7 | 17 | 25.4 |
| S-2 | 12.7 | 17 | 50 |
Notes
- 4 kgs PVC Pipe to be procured at your end from local market
- We will provide you the end rollers, support rollers & spacers.
- Spacer available in 1 inch & 2 inch length so that you can form even & distance between two rollers as per your odd length requirement
Mat : Nylon 6 or Polypropylene Black Color
| Sr no. | A | B | C | D | L | L1 | L2 |
| CR 1 | 40 | 10 | 34 | 17 | 50 | 45 | 2 |
| CR 2 | 40 | 10 | 34 | 17 | 22 | 18 | 2 |
| CR 3 | 54 | 12.5 | 68 | 19 | 50 | 45 | 3 |
| CR 4 | 54 | 12.5 | 48 | 19 | 22 | 18 | 3 |
| CR 5 | 67 | 12.5 | 60 | 19 | 45 | 40 | 3 |
| CR 6 | 67 | 12.5 | 60 | 19 | 22 | 18 | 3 |
